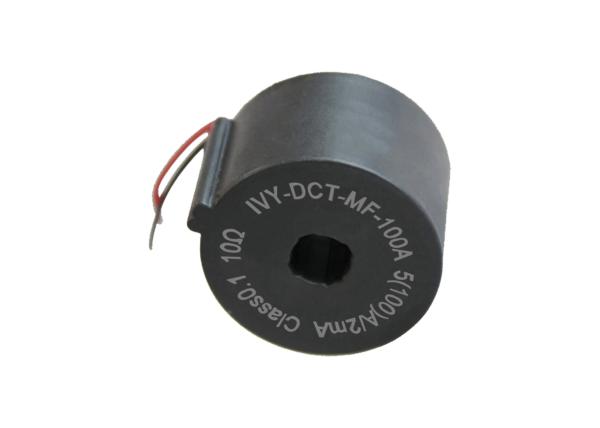

80A 100A Current Transformer Relay CT Anti Magnetic 500mT

80A 100A Current Transformer Relay CT With Anti-magnetic 500mT

1.Overview:

● Max Measurement Range to 120A

● High Accuracy Up to 0.1 Class

● 500mT Permanent Magnetic Immunity

● Widely Used for Anti-tamper

● Widely used for energy meter, smart grid, generator, EV charger, switching cabinet, medical equipment, circuit protection, electrical machine

2.Specification:

3.Application Notes:

3.1 Suggestions of choosing (take ct for energy meter as example)

(1) Please offer the primary current and secondary current or primary current and ratio as per your requirements. For example if the energy meter is 5(80)A, you may need a current transformer with current to 80A or 100A.

(2) Please specify the accuracy as per secondary circuit or accuracy requirements of energy meter. For example If it's industrial degree meter then you may need high accuracy current transformer such Class 0.5S, Class 0.01/0.02.

(3) Customized terminal design for your primary circuit - if it’s not good for fixing or you need to integrated with relay/shunt/terminal block etc then you may need to offer your drawing for design and adapt to the application.

(4) Plz choose the suitable secondary output terminal, if you need to solder and fix it on PCB then you may need to choose PCB/pin type, for other situation you can use lead wires directly.

3.2 Standard of good current transformer

(1) Plastic casing instead of traditional tape which is anti-dust,ant-shock,anti-flaming for security.

(2) Central rubber hole is more flexible for installation.

(3) Compact size and spacing-saving are also important for some devices such as energy meter, IOT device.

(4) Moreover current transformer become advanced and smart, hence 500mT permanent magnetic immunity, high accuracy when cosφ=0.5, smart CT with M-bus or RS485 communication are welcomed as well.

4.Why Choose Us

5.FAQ

Q1: What kind of product and service do you have?

We provide all kinds of electronics including power relay, latching relay, change-over switch, current transformer, shunt, smart sensor, communication & power supply module, transformer etc.

The manufacturer of meter instrument, electrical device, EV charger, medical equipment can find one step solution here. Individual buyer,distributor or (sole/ designated) agents are also welcomed by us.

Q2: Are you are factory or trading company?

We are the manufacturer,designer and sales company. Our own factory was located in Tongxiang city of Zhejiang province.

For our history plz click About us or watch IVY factory video on Youtube.

Q3: Whether the price will change greatly?

To business customers, we mark price can be negotiated here as huge demand.

Usually we will not change the prices unless some force majeure such as trade war, exchange rate change greatly etc.

Q4: Can you offer customized solution, how should I get a quotation?

Yes!We can offer customized products especially when we supply EV accessories and meter accessories. To get a quoation plz kindly offer your basic company info for registration and offer your drawing.

It usually takes 12 hours to 48 hours to filnish the design and drawing (If complicated then plz refer to pracatical situation).

Q5: How do you handle the quality problems?

We are proud of our quality! If any accidents on quality, we have before-sales, in-sales and after-sales service. And every customer will have your own sales expert and technical support.
